CAR AUDIO KENWOOD KDC-154UM
- Detachable Faceplate
- Direct Audio Control Key
- Multi-Color Illumination
- Front USB and AUX IN
- 3 Preouts 2.5V
Bs.599
KDC-154UMUSB / CD Receiver
Playable USB Files
You can play back from USB devices audio files compressed in various formats.
| Music Codec | Playable up to |
|---|---|
| FLAC | 48kHz / 16bit |
| WAV | 44.1kHz / 16bit |
| MP3 | 48kHz / 320kbps |
| WMA | 48kHz / 192kbps |
Android Music Playback (AOA2)
Supporting AOA2, install the KENWOOD Music Play app and connect your smartphone to the receiver via USB, and control your music directly from the receiver.

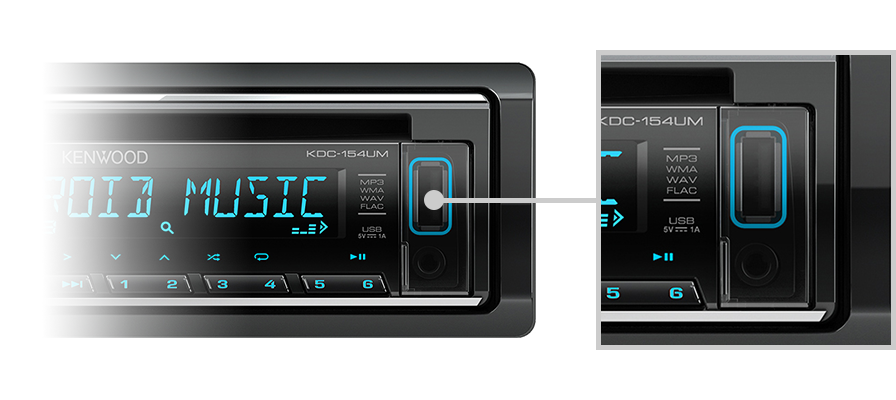

Front USB and AUX Input
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your connected device.
| Marca |
|---|
| FM | Frequency Range(MHz) (Frequency step) |
87.5MHz to 108.0MHz (50kHz) |
|
|---|---|---|---|
| Usable Sensitivity S/N 30dB |
0.71μV/75Ω | ||
| Quieting Sensitivity DIN S/N 46dB |
(2.0μV/75Ω） | ||
| Frequency Response (±3.0dB) |
30Hz to 15kHz | ||
| S/N(dB) | 64.0dB(MONO) | ||
| Stereo Separation | 40dB(1kHz) | ||
| MW (AM) |
Frequency Range(kHz) (Frequency step) |
531kHz to 1602kHz (9kHz) |
|
| Usable Sensitivity (S/N 20dB) |
28.2μV | ||
| CD | Laser Diode | GaAlAs | |
| Digital Filter(D/A) | 8 Times OverSampling | ||
| Spindle Speed | 500 to 200rpm (CLV) | ||
| Wow & Flutter | Below Mesurable Limit | ||
| Frequency Response | 20Hz to 20kHz(±1dB) | ||
| Total Harmonic Distortion | 0.01%(1kHz) | ||
| S/N Ratio (dB) | 92dB(1kHz) | ||
| Dynamic Range | 88dB | ||
| Channel Separation | 83dB | ||
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 | ||
| WMA Decode | Compliant with WINDOWS MEDIA AUDIO | ||
| AAC Decode | – | ||
| WAV Decode | – | ||
| Preout Level(mV)/Load -Unbalanced | 2500mV/10kΩ(CD) | ||
| Preout Impedance(Ω) | =<600Ω | ||
| Speaker Impedance(Ω) | 4 to 8Ω | ||
| USB I/F | USB | USB 1.1 / 2.0 Full Speed | |
| File System | FAT12 / 16 / 32 | ||
| Maximum Supply current | DC5V(DC logo) 1A | ||
| MP3 decode | Compliant with MPEG-1/2 Audio Layer-3 | ||
| WMA decode | Compliant with Windows Media Audio | ||
| AAC Decode | – | ||
| WAV Decode | Linear-PCM | ||
| FLAC Decode | FLAC file (Up to 48kHz/16bit) | ||
| AUX Input |
Frequency Response | 20 to 20kHz ±3dB | |
| Input Maximum Voltage | 1000mV | ||
| Input Impedance | 30kΩ | ||
| AMP | PWR(MAX) | 50Wx4 | |
| Full Bandwidth Power (at less than 1%THD) |
22Wx4 | ||
| TONE | Bass | 100Hz ±8dB | |
| Middle | 2.5kHz ±8dB | ||
| Treble | 12.5kHz ±8dB | ||
| GENE | Operating voltage | 12V DC car battery | |
| Installation Size | (W) | 182mm | |
| (H) | 53mm | ||
| (D) | 158mm | ||
| Net Weight (Trim plate and Mounting sleeve: Included) |
1.2(kg) | ||
